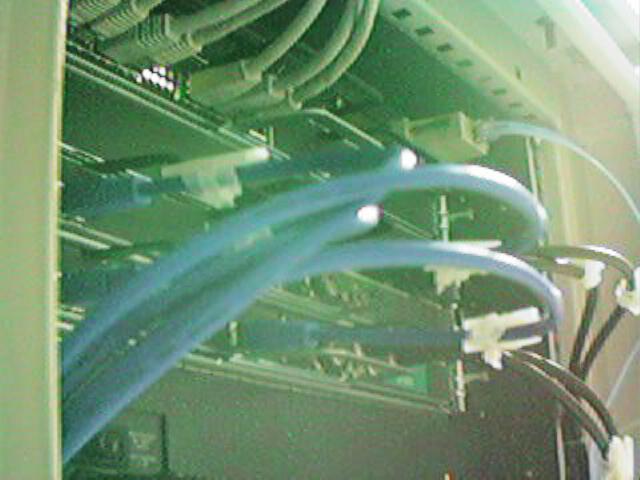

This is a partial view of one of the backbone routers (a Cisco 7500)
in Alcatraz.
- grey cables top left
- seven times E1 (2Mbps), going to the telco equipment to Berlin (8),
Einbeck(2), and Wolfburg(4)
- dark blue, foreground
- four times 100 Mbit switched LAN
- black, background
- 34Mbps to Hannover, 34Mbps to Frankfurt/Main
- light blue, top right
- console port cable for emergencies
Impressive, huh? Well, it'll probably be boring in two years.
